Coleman Cables Rg59 22 Str Bc (7/30) 95 Bc

991055

Coleman Cable - CCI

Call For Price

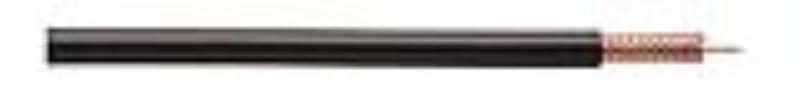

Rg59 22 Str Bc (7/30) 95 Bc
(click image to enlarge)
Quick Overview
    Features & Applications:-
  • RG59 Type
  • PE Dielectric
  • PVC Jacket
    • Interested in this item or want more information?

    Phone: 657-464-3322
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    Construction Parameters

    Electrical Properties

    Wall (in)* OD (in)*
    Conductors 22 AWG (7/30) Bare Copper - 0.030
    Dielectric Foam Polyethylene color natural 0.0570.143
    Shielding95% Solid Bare Copper Braid -0.171
    JacketPVC0.0360.242
    VALUE*
    Conductor Resistance (ohms/kft)- 15
    Impedance (ohms)- 75
    Capacitance (Max. pF/ft) - 20.5
    Velocity of Propagation (%) - 66
    Attenuation (Max. db/100 ft) 50 MHz2.4
    100 MHz3.4
    200 MHz4.9
    400 MHz7.0
    900 MHz9.7
    1000 MHz12.0
    Additional Information
    Manufacturer: Coleman Cable - CCI
    For More Information on the Coleman Cables Rg59 22 Str Bc (7/30) 95 Bc, [Click Here] to Link to Manufacturer Web Site
